Description
Description
These fixing dowels can be used on their own to fix flush to the wall or for uneven walls they are used with tile adhesive using the dot and dab method.
Note: If using with a dab of adhesive then it should be noted that up to an additional 10mm will be added to the overall thickness.
Two thickness are available: 90mm and 60mm both of which are supplied in boxes of 200.
Technical Properties
Pull out performance for various base materials - Concrete: 0.80kN Brick: 0.75kN HD Block: 0.45kN
Shear Loading - Maximum recommended shear load per fixing is 0.15kN
Application Temperature = -30oC to +90oC - All materials used for the fixing body and expansion pin are fully resistant to corrosion.
A minimum 30 mm embedment depth into the wall is recommended.
If using with a dab of adhesive then it should be noted that up to an additional 10mm will be added to the overall thickness.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| SKU:
MFD-SELECT

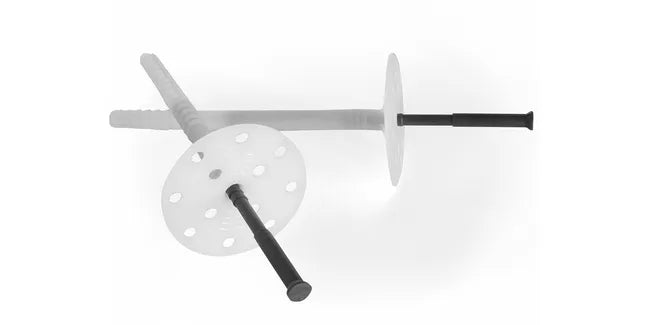

Marmox Multiboards Fixing Dowels (Choice of Size)
Couldn't load pickup availability
Hammer in pin
Use for dot & dab install
Strong fixing method
Next Working Day Delivery
Next Working Day Delivery
We offer Next Working Day Delivery (not including tiles) on orders placed before 3pm, Monday to Friday. Please be aware this is subject to Postcode Area, you will have the option to select ‘Next Working Day’ if this is available for your address.
Please note: if you are unable to receive your delivery on your selected day, we may charge a re-delivery fee.
Marmox Multiboards Fixing Dowels (Choice of Size)
£45.48 INC VAT
£37.90 EX VAT
Description
Description
These fixing dowels can be used on their own to fix flush to the wall or for uneven walls they are used with tile adhesive using the dot and dab method.
Note: If using with a dab of adhesive then it should be noted that up to an additional 10mm will be added to the overall thickness.
Two thickness are available: 90mm and 60mm both of which are supplied in boxes of 200.
Technical Properties
Pull out performance for various base materials - Concrete: 0.80kN Brick: 0.75kN HD Block: 0.45kN
Shear Loading - Maximum recommended shear load per fixing is 0.15kN
Application Temperature = -30oC to +90oC - All materials used for the fixing body and expansion pin are fully resistant to corrosion.
A minimum 30 mm embedment depth into the wall is recommended.
If using with a dab of adhesive then it should be noted that up to an additional 10mm will be added to the overall thickness.
