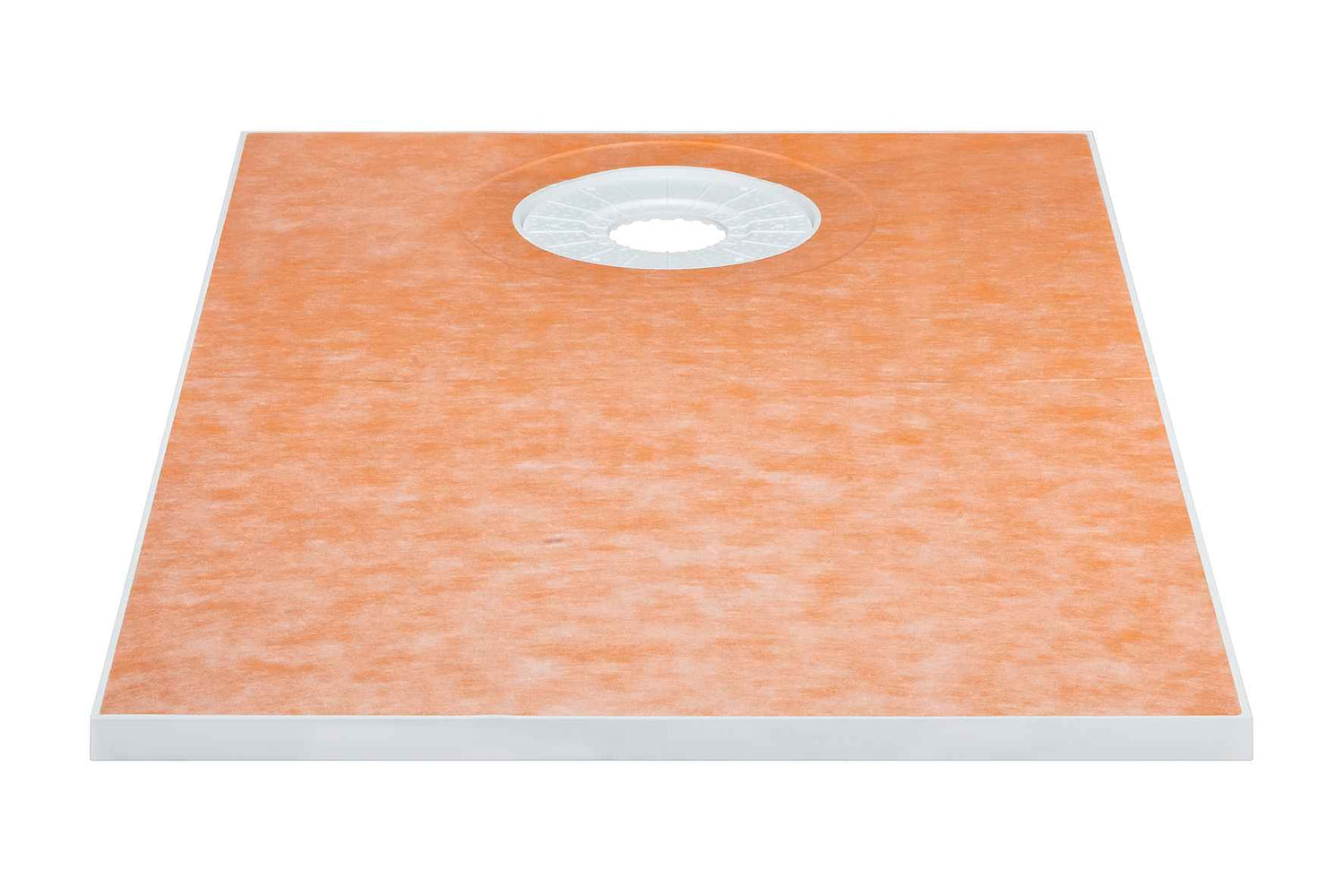

Schlüter-KERDI-SHOWER-TS is a sloped tray made of compression-resistant polystyrene with pre-adhered Schlüter-KERDI waterproofing. In showers, it creates a sufficient slope to an off-centre point drain. It is designed to accommodate the floor drains Schlüter- KERDI-DRAIN.

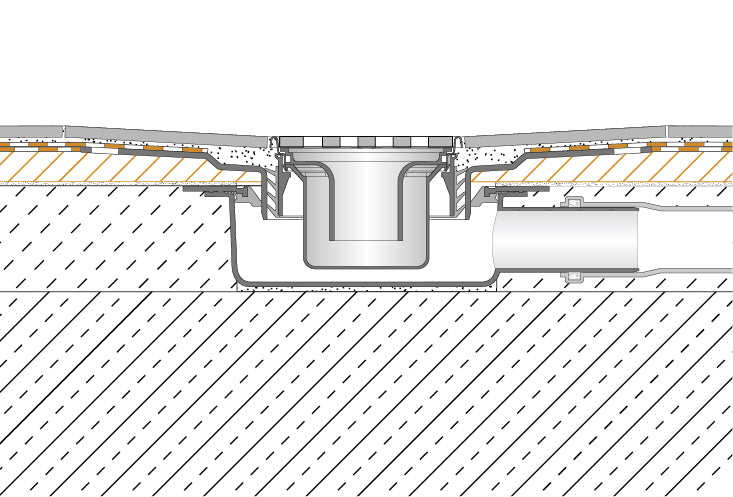

The sloped tray is installed on a level, flat, load-bearing substrate and fitted to a prepared KERDI-DRAIN drain.

Where necessary the trays can be cut to size with a utility knife, using the pre-marked cutting grooves on the underside of the tray, taking care to maintain a uniform gradient on all sides.

Material:
The sloped tray is made of compression-resistant expanded polystyrene (EPS). The drain body is made of high-impact resistant polypropylene (PP). The bonding flange is made of acrylonitrile butadiene styrene (ABS) and features an attachment flange with a fleece-coated surface. The pre-adhered Schlüter-KERDI collar on the sloped tray is made of soft polyethene with a special anchoring fleece laminated on the surface for effectively bonding with tile adhesive or adhesive products for other coverings.

Properties & Application:
The drain body, bonding flange and covers are classified as K3 according to BS EN 1253, Gullies for buildings. The classification K3 refers to areas without vehicle traffic, e.g. wetrooms in apartments, nursing homes, hotels, schools, and public washroom and shower facilities. The suitability of a proposed floor drain system must be verified based on the anticipated chemical, mechanical and/or other stresses.

Notes:

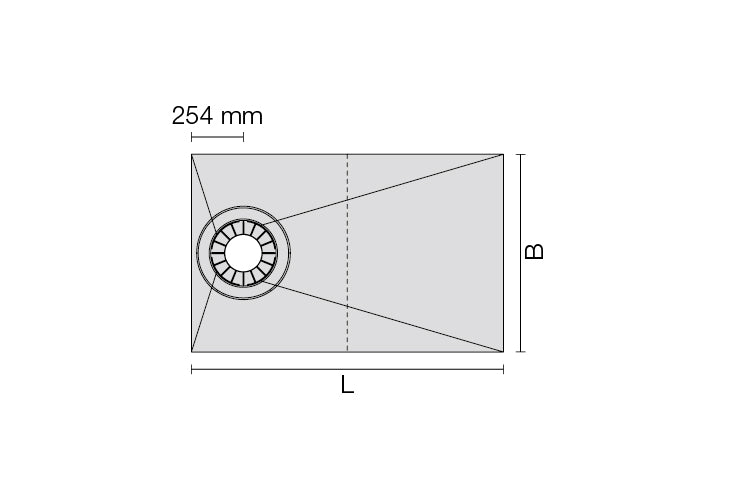

- Off-centre drainage distance to the short side: 25.4cm.
- 1% Slope on length.
- 3% Slope on width.
