Marmox Showerlay 360 with Point Drain – Pre-Sloped Wet Room Shower Base
Marmox Showerlay 360 Point Drain is a premium wet room shower base featuring a traditional square point drain, available in central and offset configurations. Designed for tiled wet room floors, the Showerlay360 creates a fully waterproof, pre-sloped surface ready for direct tiling.
Available in a wide range of square and rectangular sizes, this point drain version comes complete with a brushed stainless steel grate, adjustable to suit tile thicknesses between 5mm and 15mm, ensuring a flush, professional finish.
Easily Build a Level-Access Tiled Wet Room Floor
The Marmox Showerlay 360 system is an essential component in any wet room shower installation. It includes pre-formed sloped shower trays that integrate seamlessly with Marmox Multiboard and waterproofing products to deliver a fully sealed, leak-free showering area.
Whether you're installing a complete tiled wet room or a dedicated shower zone, the Showerlay system simplifies the process and ensures long-term durability.
Key Features of Marmox Showerlay 360 (Point Drain)
-

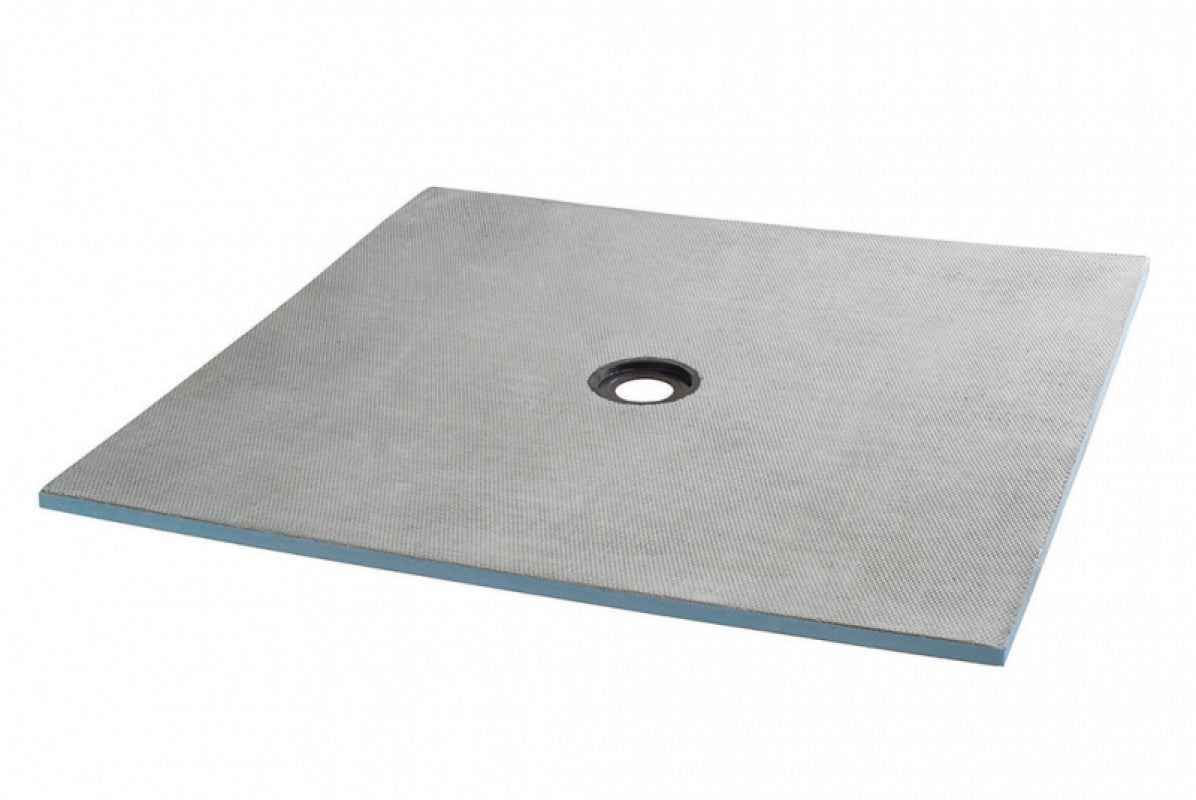

✅ Supplied with square point drain – central or offset versions
-
✅ Height-adjustable stainless steel grate (5–15mm tile thickness)
-
✅ Wide selection of sizes in square and rectangular formats
-
✅ Compatible with Marmox Multiboard and waterproofing systems
-
✅ Pre-sloped for effective drainage and easy tiling
-
✅ Provides thermal insulation and decoupling for tile stability
-
✅ 100% waterproof and impermeable – eliminates leak risk
Point Drain Versions & Dimensions
-
20mm / 24mm thick versions with square stainless steel drain
-
Ideal for standard installations with a compact build-up height
-
Adjustable insert allows height matching to tile level
(Note: tile surface should be flush with top of grate, not frame)
New Universal Compact Drain – Versatile & High Flow Rate
A newly designed low-profile universal drain enhances installation flexibility. Just 80mm deep with a 50mm water seal, this drain fits both Showerlay base types and allows the outlet pipe to be set horizontally, vertically, or at any angle in between.
-
💧 Flow rate: 30–50 litres per minute (depending on outlet angle)
-
🔄 Fully adjustable gully for easy plumbing connections
-
🛠️ Compatible with all Marmox Showerlay wet room bases
Perfect for Modern Wet Room Design
If you’re planning a minimalist level-access wet room, the Marmox Showerlay 360 Point Drain system delivers professional-grade functionality and finish. Its integrated slope, robust water resistance, and tiling compatibility make it the ideal solution for both residential and commercial bathrooms.
