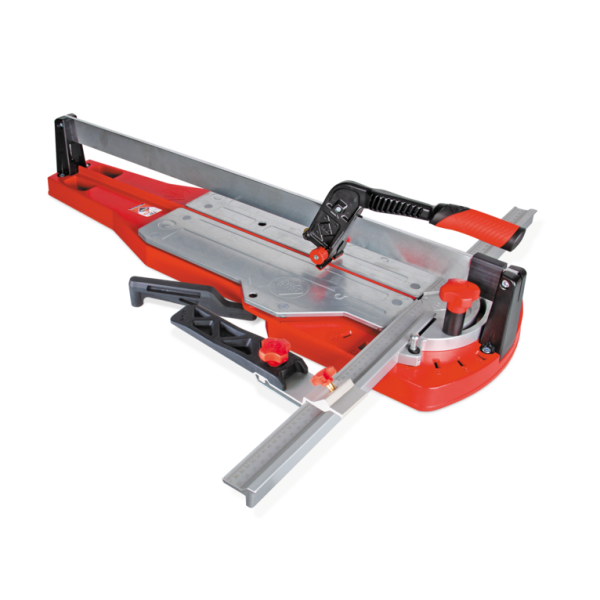

RUBI TX-MAX Manual Tile Cutter – High-Performance Tile Cutter for Porcelain, Ceramic & Stoneware
The RUBI TX-MAX Series is a premium range of professional manual tile cutters, designed for intensive cutting of all types of ceramic, porcelain, and extruded stoneware tiles. Built for durability, precision, and versatility, TX-MAX cutters are ideal for professionals who demand powerful cutting performance across a wide range of materials and thicknesses.
Read more
Key Features:
High-Performance MULTIPOINT Separator
Delivers up to 1,200 kg of breaking force, ensuring clean, accurate cuts—especially in hard porcelain stoneware (AIa/BIa) and extruded tiles.
Rotating Angular Square System (0º–45º)
Execute precise angle cuts quickly and efficiently. The built-in rotating square enables fast adjustment, ideal for repetitive mitre and diagonal cuts.
Robust 30mm Tubular Steel Guide Rails
Heavy-duty steel guide bars and an ultra-durable head with extra-long aluminum sliders provide maximum rigidity and cutting accuracy—even on large-format tiles.
Optimized Scoring Wheel Position
The advanced scoring wheel location offers improved visibility and precision while scoring and separating tiles.
Anti-Marking Hold-Down with Removable Protector
Protects delicate surfaces during cutting. The removable anti-mark protector allows clean cuts on polished and textured tiles without leaving marks.
One-Handed Spreader Mechanism
Innovative ratchet and pawl system enables easy locking and unlocking with one hand, improving workflow on thin and thick materials (cutting range:
3–21 mm without protector
Up to 19 mm with protector)
Extended Support for Large Tiles (TX-1020 Model)
Includes dual side arms for additional tile support, perfect for large-format tile cutting.
Built-In Side Stop for Repetitive Cuts
All models include a side stop guide for precise, repeatable narrow cuts and strip work.
Dual Scoring Wheels Included
Comes with 8 mm and 22 mm EXTREME scoring wheels, plus a protective carry case for portability and protection.
Fully Compatible with RUBI PLUS Scoring Wheels
Upgrade or customize your cutter with any wheel from the RUBI PLUS range, depending on your tile type and thickness.
Why Choose the RUBI TX-MAX Manual Tile Cutter?
- Best-in-class for cutting hard porcelain and extruded tiles
- Built for high-frequency, heavy-duty use
- Ideal for professional tilers, contractors, and tile installers
- Cuts a wide range of materials from 3 to 21 mm thickness
- Delivers unmatched cutting power, accuracy, and control
Note: Manual cutting of tiles thicker than 15 mm may not be possible. For thicker materials, consider using a wet saw for optimal results.
Take on demanding tile installations with confidence using the RUBI TX-MAX tile cutter—precision-engineered for pros who cut more, cut faster, and cut better.
